Slurry valve failures in mining are largely a selection problem, not a flaw in the valve itself. In a recent webinar, Casey Hayes, Emerson’s Global Product Manager for Clarkson™ Knife Gate Valves, shared five practical frameworks that project and operations engineers can use to match valve technology to real operating conditions.

Why It Matters

According to FM Australia research cited in Emerson’s slurry valve playbook, mechanical breakdowns account for up to 13% of losses for mining operations. When a slurry valve fails in a remote part of the site, the cost goes well beyond the part: callouts, difficult access, personnel exposure, and lost production when a critical circuit goes down. Replacing a failed valve with the same type in the same conditions only repeats the cycle.

Key Takeaways

• Slurry service is not one category. Mill rejects, hydrocyclone feed, thickener underflow, and tailings pump isolation, as examples, each place different demands on a valve.
• Five frameworks structure the selection: slurry characteristics, cycle frequency, discharging versus non-discharging design, material compatibility, and repairability.
• Over-specifying every valve wastes money. Under-specifying leads to early failure. Either way, lifecycle cost goes up.
• The valve’s repair model should fit the maintenance strategy already in place, whether field repair or planned workshop overhaul.
• A broad portfolio, including Clarkson™ Knife Gate Valves, Keystone™ Butterfly Valves, KTM™ Ball Valves, and Lunkenheimer™ Angle Valves, lets selection follow the application rather than the catalog.

How Slurry Damages Valves

Casey explained that slurry is a moving mixture of liquid and solids, and the solids do most of the damage. Abrasion wears away seats, sleeves, liners, and internal components. Erosion cuts through surfaces where velocity is high or the flow path is poorly matched to the media. Solids can also settle and pack into cavities or dead zones, causing leakage, jamming, or failure to fully open and close. Once damage appears, slurry escalates it quickly, often ending in product loss, water loss, and failure to safely isolate.

Four Applications, Four Sets of Requirements

Casey walked through four common applications to show how much conditions vary:

• Mill rejects line isolation. The valve holds oversized ore and broken mill balls while keeping water in the mill, and the line is flushed two to three times per week. It needs zero-leakage shutoff and the toughness to take severe impact and abrasion.
• Hydrocyclone feed isolation. These valves let operators match cluster capacity to mill feed rate. They are typically automated for rapid changes, and short-pattern designs are favored for space and weight.
• Thickener underflow isolation. Slurry runs 55 to 65% solids, and valves cycle only during maintenance every three to six months. The priority is reliable operation after long idle periods in dense, slow-moving media.
• Tailings pump isolation. Valves must handle high pressure and abrasive media with zero leakage, bidirectional shutoff for pump bypass and maintenance.

Five Frameworks for Slurry Valve Selection

Casey stressed that these frameworks do not replace application engineering. They help teams ask better questions earlier.

1. Slurry characteristics. Start with percent solids and particle size. As severity rises, specify heavier sleeves, thicker seats, more robust wear components, and protection of wetted areas.
2. Cycle frequency. Low-cycle valves risk solids settling and hardening, so sleeved designs that purge the seat and pull metal parts out of the flow path when open work well. High-cycle duties such as duty and standby, bypasses, or batch processes favor a gate sealing against a seat. Casey cautioned that thin O-ring seats are prone to wear, tearing, and leakage.
3. Discharging versus non-discharging. Discharging designs expel media from the sleeve cavity each cycle, keeping solids from building up and compromising the seal. Discharge can be managed with drain buckets, drain plates, or piping. Over walkways or environmentally sensitive areas, a non-discharging design is the right choice. Many sites use both.
4. Material compatibility. Slurry can be corrosive, reactive with certain elastomers, or hot. Evaluate seat and sleeve elastomers, gates, bodies, and coatings together. Casey noted that material selection is where specifications are most often simplified too early.
5. Field-repairable designs with standard tools and kits suit sites with installed redundancy. Valves that need workshop overhaul suit sites built around planned shutdowns.

Putting the Frameworks to Work

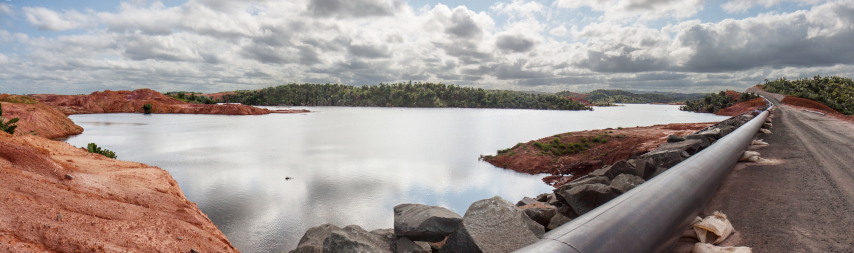

The slurry valve playbook describes a North American copper producer whose tailings expansion needed to move 55 to 65% solids slurry several miles to a new remote storage facility. The route crossed an environmentally sensitive area that required non-discharging valves, while discharging designs were acceptable at the storage facility. Emerson supplied the full scope from the Clarkson portfolio in 30- and 36-inch sizes: KGF and KGH High Pressure Knife Gate Valves for pump station isolation, and KS1 and KS3 Severe Service Knife Gate Valves for the sensitive zone. Where discharging designs were used, field-repairable construction allowed sleeve replacement without pulling the valve.

Selection is only the first decision. Emerson’s lifecycle services cover startup and commissioning, original equipment manufacturer (OEM) certified repairs with genuine parts, digital diagnostics, and shutdown and turnaround support.

Learn More

Watch the webinar to learn more ways to improve slurry valve performance, and download the Get More Out of Your Slurry Valves playbook for a deeper look at the five frameworks. If your slurry valves are failing early, contact your local Emerson representative.
