Bulk Liquids Storage Pressure Control and Overfill Prevention

by | Sep 6, 2017 | Event, Measurement Instrumentation, Tank Gauging, Valves, Actuators & Regulators | 0 comments

You only have to watch accident investigation videos such as the U.S. Chemical Safety Board’s Filling Blind video to understand the importance of pressure control and overfill prevention strategies for storage tanks in oil & gas liquids production, refining and distribution of petroleum products.

Emerson's Michael Calaway

Emerson's Magnus Johansson

This is precisely the subject of the next webinar in the Bulk Liquids Storage Terminals webinar series which will take place on Thursday, September 14 at 1pm CDT. The webinar, Tank Pressure Control and Overfill Prevention will be hosted by Emerson’s Michael Calaway and Magnus Johansson.

Michael will open and describe conditions occurring during product storage and movement in which tanks increase or decrease pressure levels. These conditions can create increased risk for explosion or implosion. Tank in-breathing is when the vapor space cools down and/or when liquid is pumped out. This lowers the tank pressure – and the tank needs to breathe in. Out-breathing is when the vapor space heats up and/or when liquid is pumped in. This raises the tanks pressure – and the tank needs to breathe out.

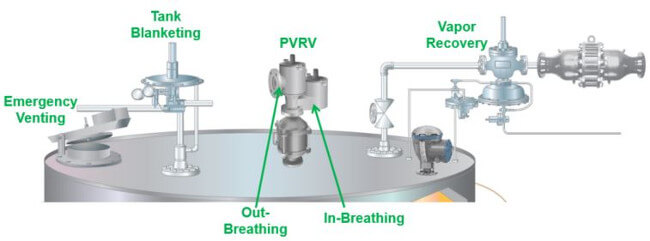

Tank blanketing and vapor recovery regulators with flame arrestors, pressure-vacuum relief valves (PVRVs), emergency vents and tank hatches help to provide solutions for reliability, protection and in accordance with pressure venting guidelines such as API 2000 and ISO 28300. Poor pressure control also can lead to excessive nitrogen gas tank blanketing usage, excessive tank maintenance activity, and oxygen ingress potentially affecting product quality.

Overfill conditions, as highlighted in the USCSB video, are a risk which must be mitigated. Magnus will share how modern tank gauging and overfill prevention solutions help to minimize this risk. Having accurate and continuous control of the contents within the tanks enables faster transfers, better tank utilization, fewer visual inspections, and longer intervals between proof tests.

Per the industrial insurance broker, Marsh, tank overfills occur once every 3,300 filling operations. Level measurement technology as evolved from manual to continuous radar-based measurements. The API 2350 overfill prevention guidelines describe the minimum requirements required to comply with modern best practices. It complements safety practices such as using safety instrumented systems (SIS) designed in accordance with the IEC 61511 global safety standard.

Join the webinar and bring your questions for Michael and Magnus to learn more about pressure control and the different options for reducing overfill risk including level switches, radar gauges and 2-in-1 radar gauges for tanks with only one opening and requirements for SIL 2 and SIL 3 safety risk reduction applications.

Other webinars in this series include:

You can connect and interact with other pressure management and tank gauging experts in the Regulators and Tank Gauging groups in the Emerson Exchange 365 community.
