For decades, calibration facilities have relied on turbine meters as the reference standard for high-pressure gas measurement. Their repeatability made them the trusted backbone of custody transfer calibration where measurement accuracy directly impacts financial outcomes.
But as the industry evolves, so do the demands placed on these facilities.
Working closely with EuroLoop, one of the world’s leading gas calibration centers in Rotterdam, I’ve had the privilege of seeing firsthand what happens when a forward-thinking operator challenges the status quo and proves that a better path forward is possible.
The Challenge: Balancing Accuracy with Operational Reality
EuroLoop operates a world-class, closed-loop calibration facility where audit-ready, highly repeatable measurement is non-negotiable.
Like many facilities, they traditionally depended on turbine meters as reference standards. While proven, these systems brought inherent limitations:
- Narrower operational range
- High maintenance due to moving parts and contamination risk
- Limited ability to automate and gain deeper process insight
- Lack of diagnostic tools
At the same time, previous ultrasonic technologies simply couldn’t meet the repeatability requirements needed for reference measurement.
This created a clear challenge: Could EuroLoop achieve turbine-level repeatability while unlocking the operational advantages of ultrasonic measurement?
A Turning Point: When Performance Changed the Conversation
EuroLoop’s evaluation process was rigorous and rightfully so.
They had tested meters from manufacturers across the industry, benchmarking performance over time using watchdog meters within their calibration loop.
What made the difference wasn’t just the inherent advantages of ultrasonic technology, it was repeatability.
For the first time, an ultrasonic solution demonstrated the level of stability required to be seriously considered as a reference standard.
That moment changed the conversation from “Is ultrasonic flow measurement viable?” to “How do we implement this with confidence?”
From Validation to Transformation
The transition didn’t happen overnight. EuroLoop took a phased, highly controlled approach—validating performance line by line before scaling across the facility.

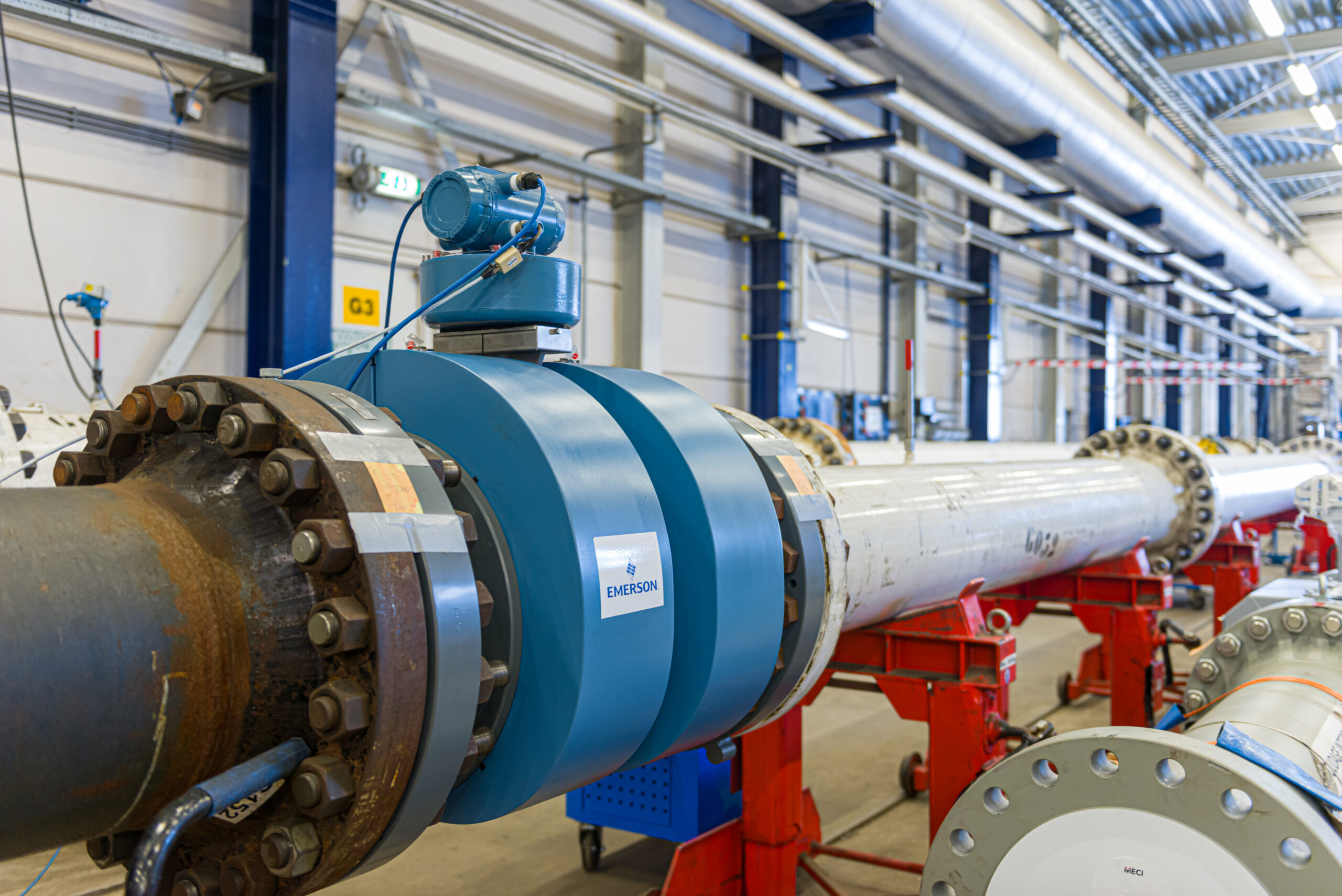

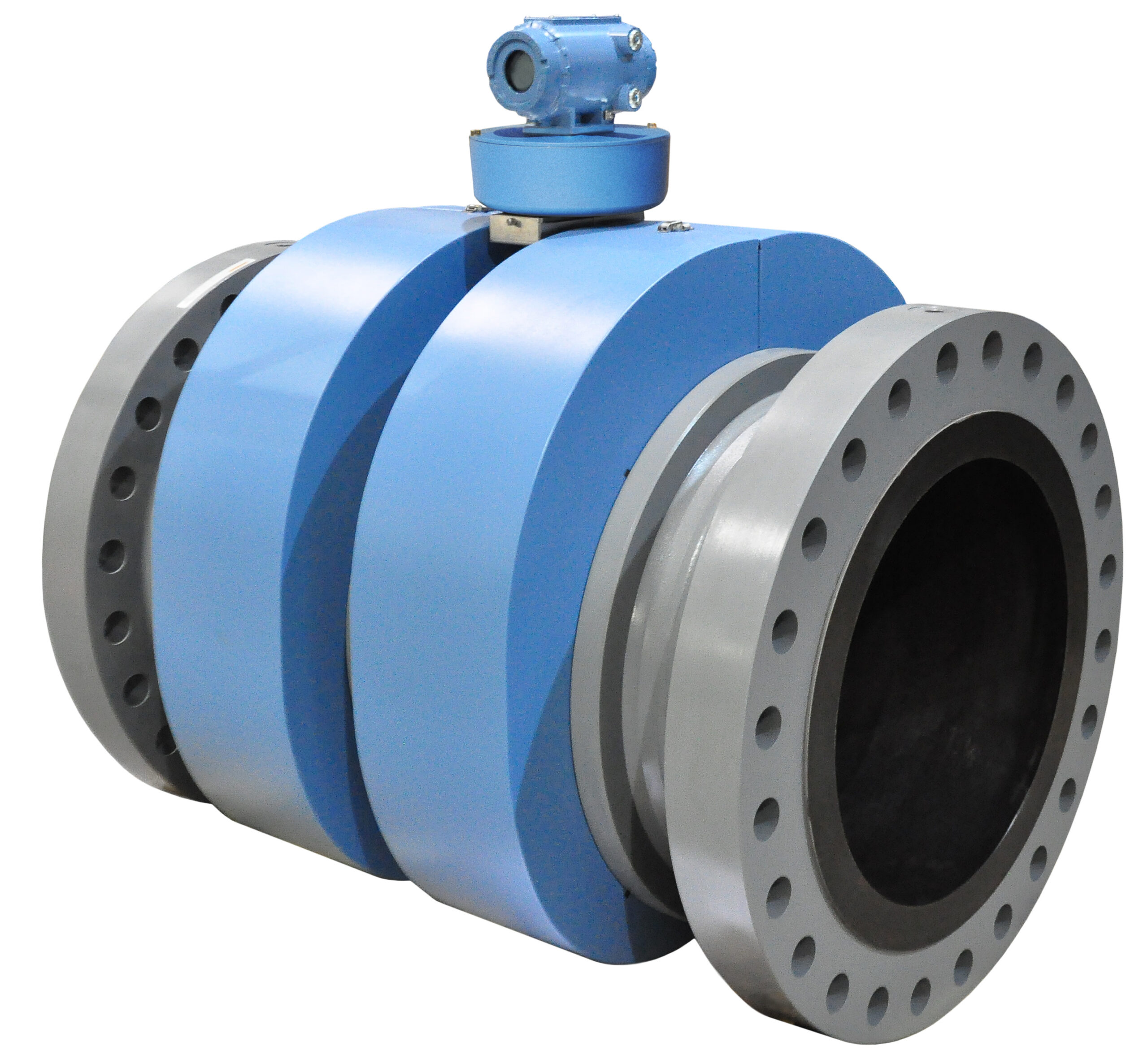

Ultimately, they implemented Emerson’s Rosemount™ 3418 Eight-Path Gas Ultrasonic Flow Meters as their reference standard, supported by additional meters for continuous validation and traceability.
This wasn’t just a technology upgrade; it was a fundamental shift in how calibration could be performed.
Unlocking New Levels of Performance
By moving to ultrasonic measurement, EuroLoop achieved several meaningful improvements:
- True Reference-Level Repeatability: Ultrasonic meters reached the repeatability required to replace turbine meters in reference applications—something that wasn’t previously possible.
- Broader Rangeability and Flexibility: With a wider linear operating range, EuroLoop was able to reduce line sizes from 16-inch turbine meters to 12-inch ultrasonic meters, lowering infrastructure requirements while maintaining performance.
- Lower Cost of Ownership: Eliminating moving parts significantly reduced maintenance and downtime challenges, an ongoing pain point with turbine-based systems.
- Increased Automation and Insight: Access to raw measurement data and advanced diagnostics enabled greater automation of calibration processes and deeper visibility into flow behavior.
As someone who has worked closely with their team, one of the most impactful changes has been how much more they now see. From flow profile changes to system stability, ultrasonic diagnostics provide a level of insight that simply wasn’t possible before.
A First for the Industry
EuroLoop is now the first calibration facility to fully transition from turbine meters to ultrasonic meters as the reference standard.
That’s a significant milestone not just for one facility, but for the broader energy industry.
It demonstrates that calibration centers no longer must tradeoff between:
- Accuracy and flexibility
- Repeatability and automation
- Performance and cost efficiency
Those trade-offs are no longer necessary.
What This Means for the Future of Calibration
From my perspective, this project represents more than a successful implementation, it signals a shift in what the industry should expect from calibration technology.
With ultrasonic measurement, facilities can now:
- Design more flexible, scalable calibration systems
- Reduce operational risk tied to maintenance and downtime
- Leverage data to drive smarter, more automated workflows
- Maintain full traceability while improving performance
And importantly, they can do all of this without compromising on measurement integrity.
A Partnership Built on Trust and Performance
One of the things I value most about working with EuroLoop is their commitment to rigor. They tested, challenged, and validated every step of this transition.
That’s exactly what makes the outcome so meaningful.
They didn’t adopt ultrasonic technology because it was new, they adopted it because it proved itself.
Setting the Benchmark
EuroLoop has set a new benchmark for high-integrity gas calibration—one built on confidence, data, and performance.
As more facilities evaluate how to modernize their operations, I believe this project will serve as an example for what’s possible.
And in many ways, this is just the beginning.
Read the full case study here. Learn more about Rosemount Ultrasonic Flow Meters and other Emerson flow measurement solutions at Emerson.com/RosemountUltrasonic.
