Precision is Key in LNG Full Containment Tanks-Part 2

by | Oct 8, 2021 | Oil & Gas, Tank Gauging

Varshneya Sridharan

Product Manager for Emerson Asia-Pacific Marketing

Figure 1: A view of the Inventory Data for Full containment Tanks within Rosemount TankMaster inventory management software package

In this second blog post, we will outline the types of tanks applied to LNG tanks, Emerson’s latest in-house powerful Inventory Management Software for Full Containment Tanks Storing LNG and Liquefied Gases and finally the safety features deliberations LNG Full Containment Tanks.

Emerson’s latest in-house powerful Inventory Management Software for Full Containment Tanks Storing LNG and Liquefied Gases

Emerson has enhanced its Rosemount TankMaster inventory management software to help optimize tank usage and increase safety in full containment storage tanks for LNG and other liquefied gases. These tanks are large, complex structures with a typical capacity of up to 200,000 cubic meters, which place specific demands on tank gauging systems. By providing both inventory management and rollover prediction in a single software solution, TankMaster reduces costs, increases ease-of-use and reduces the risk of a potential accident.

Rollovers are dangerous releases of boil-off vapor that can occur when LNG stratification is left unchecked. The consequences can be severe – including extensive tank damage and the release of large quantities of LNG into the atmosphere. Organizations are therefore required to implement rollover prediction measures. Emerson’s TankMaster software uses data from level, temperature and density measurement devices incorporated into the Rosemount Tank Gauging System, to detect layering and calculate when a rollover might occur, enabling operators to take preventative action.

Figure 2: LNG Rollover process as described in GIIGNL Standards

Traditionally, organizations have kept their rollover prediction and inventory management software installed separately on different PCs. Rosemount TankMaster offers both functions in a single solution, as well as stratification monitoring and alarms, cool-down and leak detection, temperature measurement overview and remote proof-testing support. This innovation creates various benefits for end users including lower costs, improved ease-of-use and minimal training needs, which help reduce the risk of an accident due to human error.

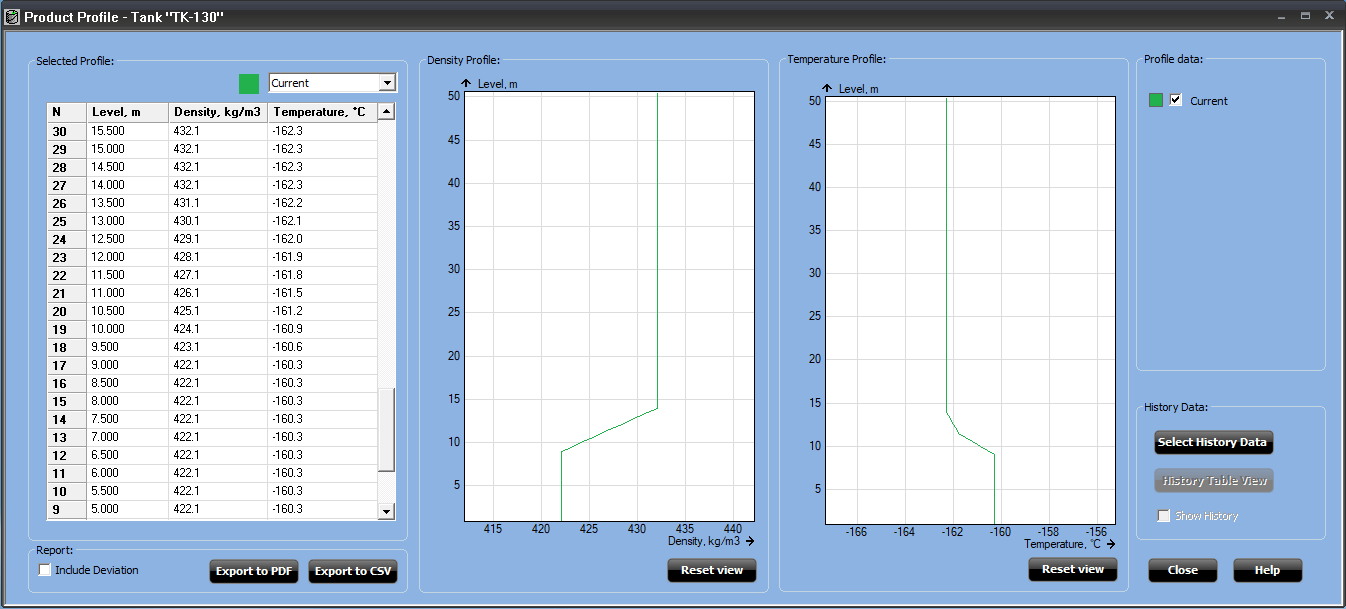

Figure 3: Density and Temperature Profiles within Rosemount TankMaster inventory management software package (Click to enlarge image)

Rosemount TankMaster is a powerful and easy-to-use Windows-based software package that collects real-time data from the level, temperature, density and pressure measurement technology that forms a key part of the Rosemount Tank Gauging System. It gives organizations a complete overview of their full containment storage tanks, leading to increased operational efficiency and safety. Further supporting ease-of-use, TankMaster provides simple, step-by-step configuration and set-up guidance for all measurement devices incorporated in the tank gauging system.

Safety features deliberations LNG Full Containment Tanks

Separation

The accurate multiple spot temperature sensors used for inventory measurements also provide an online temperature profile as a back-up to the RTD instruments. Additional temperature measurements are made by multiple spot temperature sensors to monitor the cool-down process and to add leak detection. Both functions are achieved by using several single spot temperate sensor elements which are fully integrated in the tank gauging system. These are distributed along the inner tank wall and at the tank bottom (for cool-down supervision) and within the insulation space between the inner and outer tank walls (for leak detection). Three level gauges are typically installed on an LNG storage tank – one supporting the basic process control system (BPCS), a secondary and redundant gauge for inventory, and a third providing information for the overfill prevention system (OPS). In compliance with the International Electrotechnical Commission’s 61511-2 standard, the same technology can be used for all three gauges.

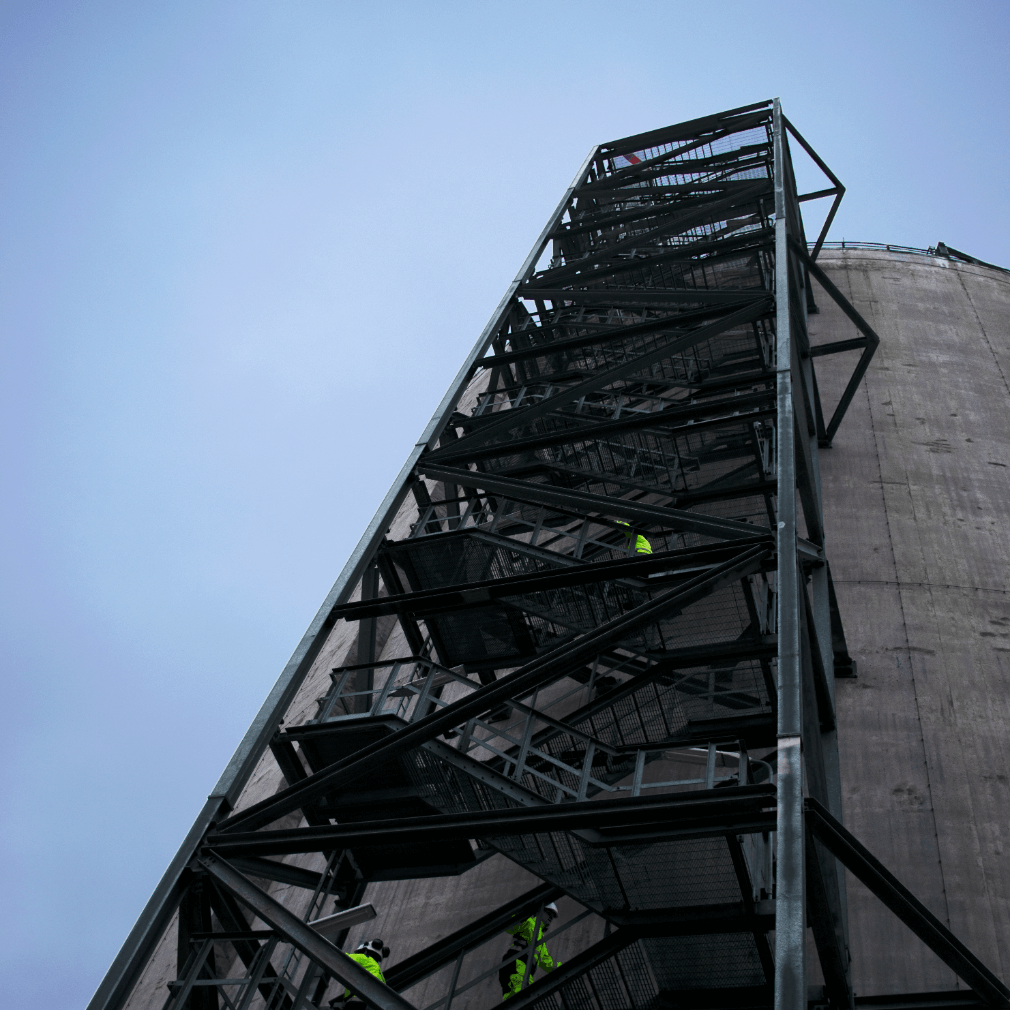

Figure 4: Remote Proof Tests can be performed remotely using TankMaster without operators needing to climb tanks (as is shown in the picture)

Compared with using different technologies, this ‘identical separation’ method provides the advantage of reducing complexity and the likelihood of human error during installation and maintenance.

Proof-testing

Level gauges used in a safety instrumented system must be periodically proof tested to ensure that they will function properly when a safety demand occurs. These tests have traditionally been carried out by technicians in the field and verified by a worker in the control room. This time-consuming and labor-intensive method can involve workers having to climb tanks to access the instruments, putting their safety at risk. However, new technology within the latest radar level gauges now enables.

operators to undertake proof-testing remotely by inputting a straightforward sequence of settings and commands from their interface in the control room. This eliminates the need for workers to climb tanks and/or be exposed to tank contents, and thereby provides significant benefits in terms of reducing risk, saving time, and improving efficiency.

The Conclusion

In the first blog post in this series, we discussed the evolution of the technology for level measurement, the requirements of Full Containment storage tanks, challenges we expect to face, the outmoded technologies and the best-in-class solutions, and finally the system make up of a robust Rosemount Full Containment Tank Gauging Solution.

In this second post, we discussed Emerson’s latest in-house powerful Inventory Management Software for Full Containment Tanks Storing LNG and Liquefied Gases and finally the safety features deliberations LNG Full Containment Tanks.
