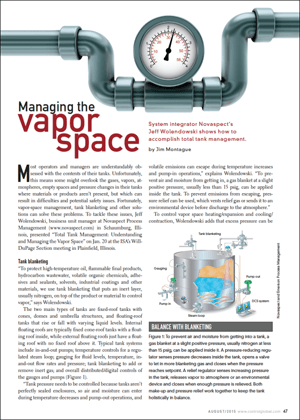

If you’re like me, a technical article that begins, “How to…” attracts me like a bear to honey.And so it was, when I saw the ControlGlobal.com article, Managing vapor space-how to accomplish total tank management. Control, Control Design and Industrial Networking magazines executive editor, Jim Montague recaps a presentation by Jeff Wolendowski with Emerson local business partner Novaspect.
Jim quotes Jeff defining tank blanketing as:
Vapor space management is used in oil and gas, petrochemical, chemical, pharmaceutical, food and beverage, semiconductor manufacturing and any other applications where we need to preserve the quality of materials and products and protect the environment… To protect high-temperature oil, flammable final products, hydrocarbon wastewater, volatile organic chemicals, adhesives and sealants, solvents, industrial coatings and other materials, we use tank blanketing that puts an inert layer, usually nitrogen, on top of the product or material to control vapor.
Floating-roof and fixed-roof are the two main types of tanks. As you can guess, floating-roofs rise and fall based on tank level. Some of the systems involved with tanks include:
…in-and-out pumps; temperature controls for a regulated steam loop; gauging for fluid levels, temperature, in-and-out flow rates and pressure; tank blanketing to add or remove inert gas; and overall distributed/digital controls of the gauges and pumps…
Jeff explains how to prevent air and moisture from entering a tank as well as an overpressure condition:
…a gas blanket at a slight positive pressure, usually less than 15 psig, can be applied inside the tank. To prevent emissions from escaping, pressure relief can be used, which vents relief gas or sends it to an environmental device before discharge to the atmosphere.
For abnormal conditions:
Setpoints for pressure relief (Depad) are higher than those for makeup pressure (Pad) to minimize use of blanketing gas, while setpoints for emergency venting for overpressure and emergency vacuum relief for underpressure are set outside of normal operating ranges. For proper operation, none of the setpoints should overlap.
Other tank blanket gases used include carbon dioxide, natural gas and fuel gas, depending on what is being stored and what is available for use.
Jeff described some of the standards governing the management of tanks [hyperlinks added]:
API 2000 was updated in 2009 in its sixth edition, which adopted the ISO 28300 standard issued in 2008 for venting of atmospheric and low-pressure storage tanks. Where earlier standards only dealt with contents pumping and vapor space heating/expansion and cooling/contraction, these newer guidelines can increase thermal inbreathing capacity of tanks by about 20-50% by also addressing the effect on tanks of their geographical latitude, average storage temperatures, vapor pressure and insulation, which can alter flow requirements.
You’ll want to read the full article for his thoughts on saving blanketing gas, installation considerations, tank-related regulations and other best practices if tanks are a part of your process. You can also connect and interact with other tank management experts in the Tank Gauging and Level groups in the Emerson Exchange 365 community.
