Managing and Protecting Storage Tanks

by , , | Apr 12, 2023 | Safety, Valves, Actuators & Regulators

Jim Cahill

Jim Cahill

Chief Blogger, Social Marketing Leader

At the 4C Health, Safety & Environmental Conference, Emerson’s Dean Barnes and Mo Fazl presented How to Control and Reduce Tank Vent Fugitive Emissions and Maintenance Costs and Quantify Releases Through Proper Product Selection and Remote Monitoring. Here is his session abstract:

Tank venting equipment such as blanketing regulators, thief hatches, pressure/vacuum relief valves and emergency vents are needed to safely operate ASTs. If these devices are not correctly sized and selected, excessive fugitive emissions and increased maintenance costs can occur. This session will cover the basic principles of tank vent sizing and selection to help control fugitive emissions as well as how to use remote monitoring and the ProductionManager EDGE software to gain a better understanding of what is happening on top of the tank and quantify releases in the event these devices open to relieve pressure.

Dean opened by describing priorities for tank owners, including regulatory & environmental, safety, cost, and product quality & potential product loss. The technologies used to mitigate problems must be effective and reliable.

Pressure conditions for tanksThe purpose of tank blanketing (Pad) regulators and vapor recovery depad regulators is:

  • Blanketing Regulator relieves vacuum condition by introducing blanketing media into the tank
  • Depad Regulator relieves over-pressure condition
  • Preserve product integrity
  • Safety – creates non-flammable conditions in tanks
  • Environmental – minimizes emissions if N2 used as blanketing media

You should consider the following:

  • What is the lock-up tail relative to the PVRV set point?
  • Installation location
    • The best location is on top of the tank
    • Avoid installing at grade level – it will increase lock-up tail

The purpose of Pressure / Vacuum Relief Valves (PVRVs) are:

  • Handle normal venting requirements for the tank
  • Prevent over-pressure / under-pressure situations

PVRVs:

  • Will exhibit leakage below the setpoint
    • The leak rate is given as a volume at a percentage of the setpoint.
    • ES-850 / ES-950 0.1 SCFH @ 90%
  • The tightest seal is achieved when normal operating pressure is <75% of the setpoint

A Thief/Gauge Hatch performs a similar function to a PVRV. They allow easy access to the tank for sampling and level measurement. Spring-loaded units have the tightest seal but lower venting capacity. Deadweight units have high venting capacity but poor sealing characteristics (leaky).

Emergency Pressure Relief Vents (EPRVs) handle emergency venting requirements, such as in a fire condition. These EPRVs prevent catastrophic over-pressure / under-pressure situations by enabling quick pressure release or inbreathing in vacuum conditions.

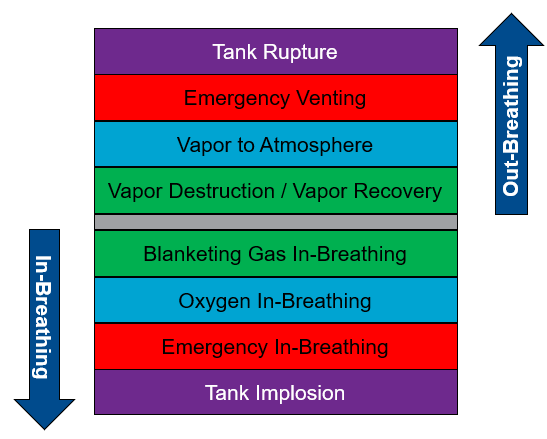

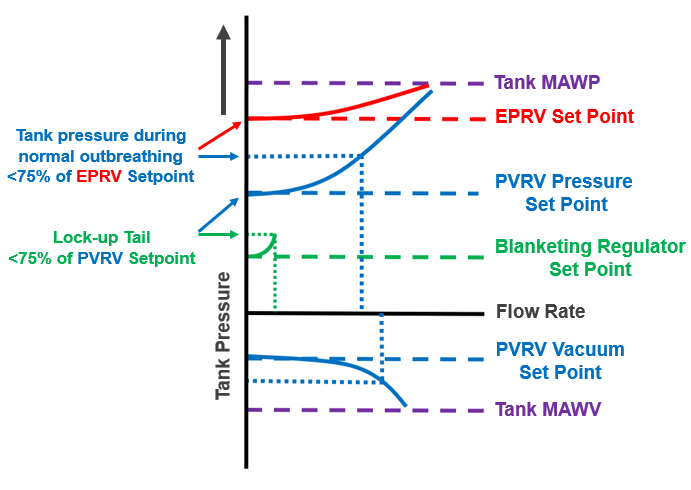

tank pressure safety settingsMo came up to describe how to make these instruments work together effectively. Here’s how to consider the settings:

Two types of PVRVs are conventional and 10% overpressure full lift. These full-lift PVRVs reduce the overpressure needed to fully open the valve, typically occurring at a pressure of 10% above the setpoint. Another type, pilot-operated PVRVs, are bubble-tight at 90% of setting & full lift at less than 10% overpressure. Some of the applications where these are applied include:

  • Toxic or hazardous chemical storage where the tightest sealing is essential
  • Backpressure imposed by the discharge piping
  • Operating pressure close to MAWP (Maximum Allowable Working Pressure)
  • Pressure settings up to 50 psig and vacuum settings up to 5 psig

Tank top pressure control devices, including emergency devices, have historically remained unmonitored, leaving operators blind to potential problems and pressure events.

Follow the links above and visit the Tank Pressure Control section on Emerson.com for more information on these technologies and solutions to help you drive safer, more reliable, and more secure operations.
